Product Description
Compact and lightweight 500W electric outboard motor designed for small boats, dinghies, and tenders, offering a clean, quiet, and eco-friendly alternative to traditional fuel-powered engines. Engineered for portability and ease of use, this motor combines efficient performance with modern electric propulsion technology for smooth and reliable on-water operation.
Built with an integrated lithium-ion battery system and direct-drive motor design, it delivers near-silent operation with minimal maintenance requirements. The adjustable shaft length and multiple tilt positions allow flexible installation across different transom heights, making it suitable for a wide range of small watercraft.
With a focus on sustainability and convenience, this electric outboard includes USB-C output functionality for charging mobile devices, making it a practical companion for recreational boating and fishing trips.

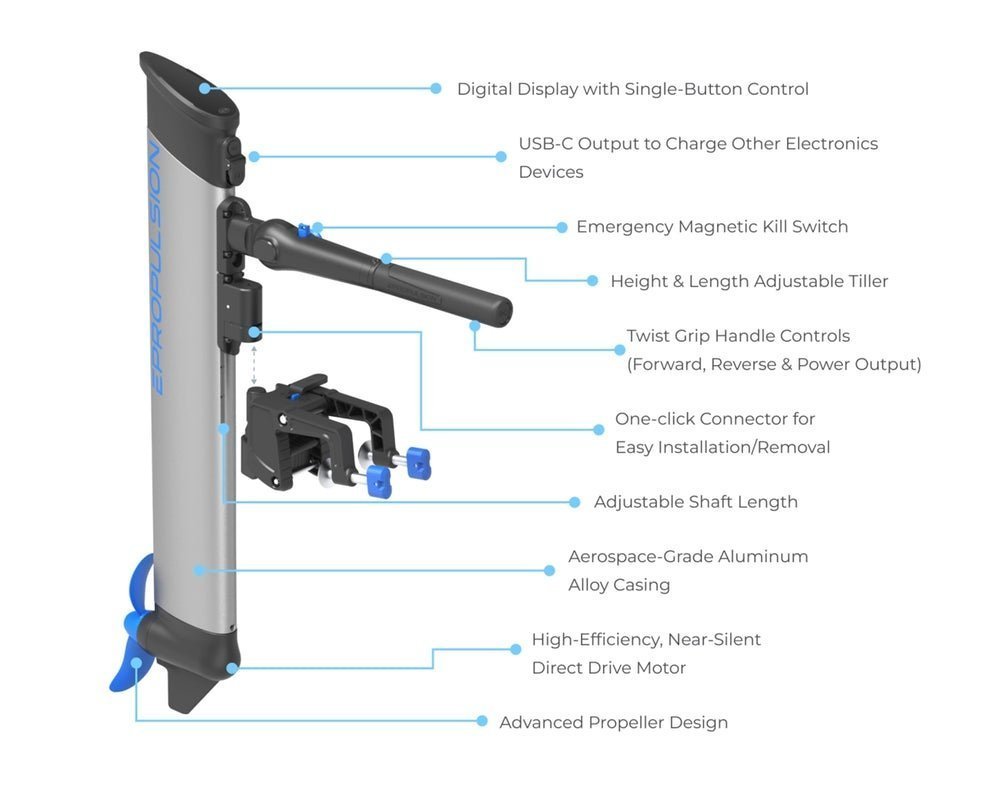

Key Features & Benefits
Lightweight & Portable Design
Ultra-light construction allows easy carrying, installation, and removal, ideal for portable marine use.
Integrated Battery System
Built-in 378Wh lithium-ion battery provides efficient power delivery without external battery setup.
Quiet Direct-Drive Operation
Underwater motor placement ensures extremely quiet performance for a smooth boating experience.
Adjustable Shaft Length
Multiple shaft positions allow compatibility with different transom heights for flexible installation.
Variable Power Modes
Supports multiple power levels for balanced cruising, energy efficiency, or short bursts of higher performance.

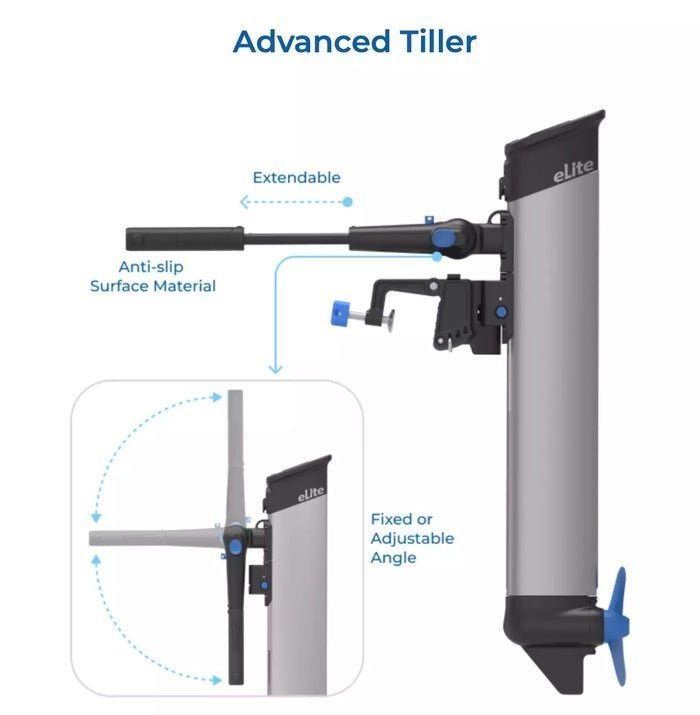

Adjustable Tilt & Steering
Multiple tilt angles and wide steering range enhance maneuverability in shallow or open waters.
USB-C Charging Port
Integrated USB-C output allows charging of mobile devices directly from the motor system.
Low Maintenance Operation
No fuel, no oil changes, and no winterization required, reducing long-term maintenance costs.
Easy Transport & Storage
Foldable tiller and detachable bracket design improve portability and storage convenience.
Technical Specifications
- Motor Type: Electric Direct-Drive Outboard
- Nominal Power: 500W
- Maximum Power: 750W (Sport Mode)
- Battery: Integrated 378Wh 25.2V Lithium-ion
- Battery Life: Up to 800 charge cycles (80% DOD)
- Charger Input: 100–240V AC (standard wall outlet)
- Optional Charging: 12V charger available
- Cooling System: Natural cooling
- Rated RPM: 1500 – 1700
- Operating Temperature: -5°C to 55°C
- Storage Temperature: -20°C to 45°C
- Steering Angle: ±70°

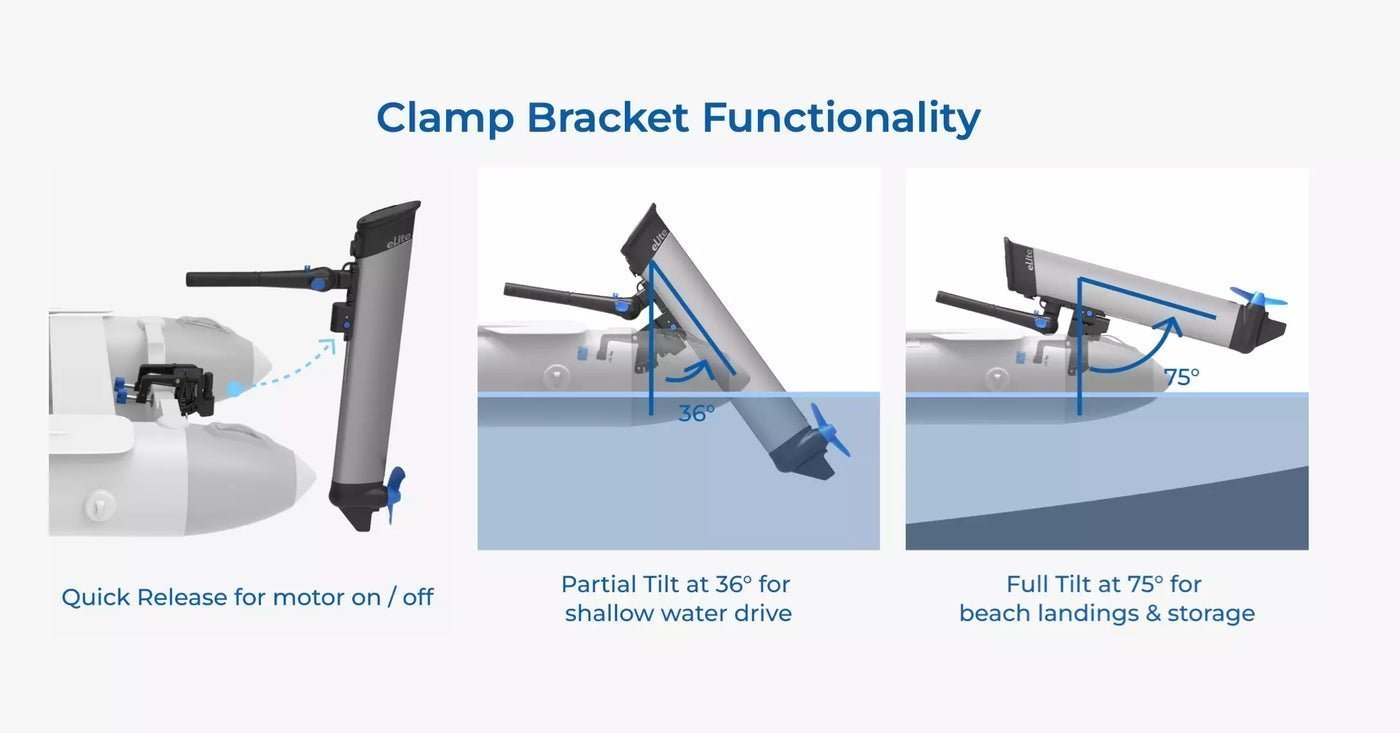

- Tilt Angles: 8° / 17° / 26°
- Shallow Water Mode: 36° tilt
- Maximum Tilt Angle: 75°
- USB Output: USB-C charging port
Dimensions & Weight
- Motor Dimensions: 297 × 75 × 890 mm
- Motor Weight (without bracket): 6.7 kg (14.7 lbs)
- Motor Weight (with bracket): 7.9 kg (17.4 lbs)
- Adjustable Shaft Length: Multiple positions (approx. 282.5 mm to 401 mm range)
Performance Overview
This electric outboard motor is designed for efficient, quiet, and environmentally friendly boating. It delivers smooth propulsion for small vessels while minimizing noise, vibration, and maintenance needs. With adjustable shaft settings, flexible tilt positions, and integrated battery power, it provides a practical and modern solution for recreational marine use.
